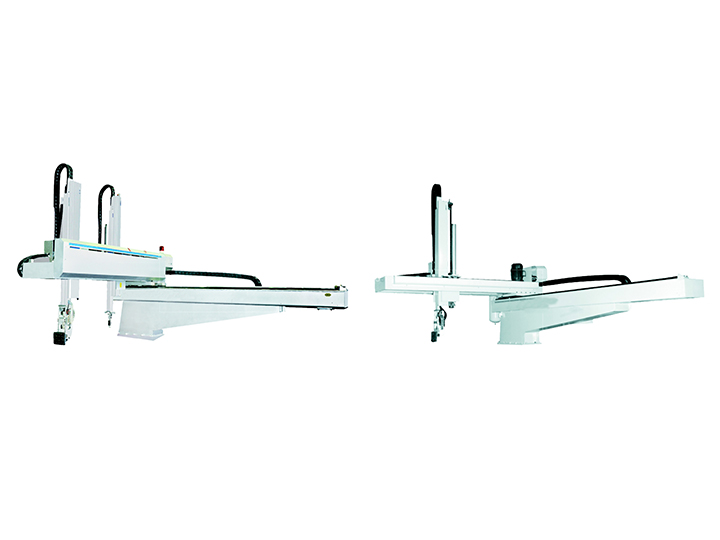

DK large "Titan king" series

Servo motors drive the traverse part, the crosswise part of the finished arm, the crosswise part of the nozzle arm, the down part of the finished arm and the down part of the nozzle arm, with different cross out and down positions. In the injection molding machine injection molding products and mold, the mechanical hand can automatically and accurately take out the product and the nozzle, can be placed in a number of points, can be arranged in order, circulation of goods, will not cause product deformation, will not touch the surface, and can achieve automatic packing and labeling within the mold and other precision requirements. The utility model has the advantages of simple structure, fast extraction speed, high efficiency, small vibration, high precision and long service life. In this way, the production capacity can be increased by 20%-30%, the defect rate of product cost can be reduced, the safety of operators can be guaranteed, and the labor and waste can be reduced.


· general features:
1) large DK series are suitable for all types of horizontal injection moulding machines ranging from 850 to 4000 tons. The upper and lower arm structures are double-section, with the travel specifications ranging from 1700mm to 3000mm.
2) there are three series of traverse frequency conversion, pneumatic drive, 3-axis servo drive and 5-axis servo drive.
3) the installation of DK series manipulator can increase the production capacity (20 ~ 30%), reduce the defective rate of products, ensure the safety of operators, reduce labor and waste.
4) body structure: high precision linear slide rail is used for transverse, drawing and upper and lower axes, with long wear resistance life. The upper and lower arms use light and high steel aluminum alloy structure beam, special belt double speed mechanism design, can greatly shorten the structural height of the upper and lower arms, in addition to increase the speed and stability of the upper and lower stroke, and can cooperate with the plant in low height. 5) side pose chamfering mechanism: the chamfering Angle is fixed at 90 degrees and can be taken out with the male mold or the female mold.
· traverse frequency conversion/pneumatic drive features:
1) the transverse axis is driven by variable frequency motor, and the drawing and upper and lower axes are driven by cylinders.
2) the transverse axis is imported variable frequency motor plus coding control setting, with fast speed, accurate positioning and high reliability. It can be customized for taking and placing things, and can place products in multiple points and cycles.
3) remote adjustment of drawing and up and down stroke by electric remote control can save adjustment time and increase operation safety.
4) jig: suction cup or holder can be selected according to the need. One suction and one hold are reserved in the jig circuit, which can be used for the removal of jig such as suction clamp, and can be used for the removal of various finished products.
· features of 3-axis servo-driven crosswalk manipulator:
1) transverse, main arm drawing, upper and lower shafts of main arm all adopt imported servo motor and high precision ball screw rod, with features of no backspace, high rigidity, smooth movement and excellent durability, etc.
Positioning accuracy up to 0.1mm.
2) the feed head arm can be added for water inlet, and the feed head arm is driven by cylinder.
3) jigs: suckers or jigs can be selected according to the need. The jigs loop is reserved for two suckers and three suckers, which can be used for the removal of jigs such as suction clamps, and can be used for the removal of various finished products.
4) the maximum load can be up to 100 kg (including finished products and fixtures).
· features of 5-axis servo-driven crosswalk manipulator:
1) transverse, main and auxiliary arm drawing, main and auxiliary arm upper and lower axes are imported servo motor and high precision ball screw, with no back gap and high rigidity, smooth movement and excellent durability, positioning accuracy up to 0.1mm.
2) jigs: suckers or jigs can be selected according to the need. The jigs loop is reserved for two suckers and three suckers, which can be used for the removal of jigs such as suction clamps, and can be used for the removal of various finished products.
3) the maximum load can be up to 100 kg (including finished products and fixtures).
· operating system features:
1) industrial computer controller, Windows operating system, more powerful, can support network and portable disk, making factory automation more efficient and easier to manage.
2) simulate the running program of the manipulator in advance on the computer. When changing the mold, only the set position and stroke need to be fine-tuned to greatly shorten the mold changing time.
3) user program software with teaching function and editable function can be edited according to the needs of customers, so as to meet the difficulty of taking out the application and matching the automatic application of the downstream, such as stacking, packing, detection, etc.
4) each axis is driven independently to achieve the function of 3-axis / 5-axis co-movement, and can do arc movement, can perform continuous path movement, to achieve rapid operation to take out the product.
5) large color touch control screen (10.4 inches), the screen is clear and easy to operate.
6) hold-type operator, friendly interface, Chinese and English exchange, easy to learn. A variety of functions, procedures for selection, automatic, manual operation. 64 sets of mould memory, simple operation and setting when changing mould. Automatic fault detection, display on the screen for easy adjustment.
